Highlights

---

• 5-axis / 5-side machining
• High flexibility through automation and large tool magazine
• Robot loading depending on requirements with pallet or workpiece handling
• Tool, magazine with 140 pockets

Raw part sizes

Types	Unit of measurement	Value
Horizontal X/Y/Z	mm	650/400/300
Vertical X/Y/Z	mm	650/300/500

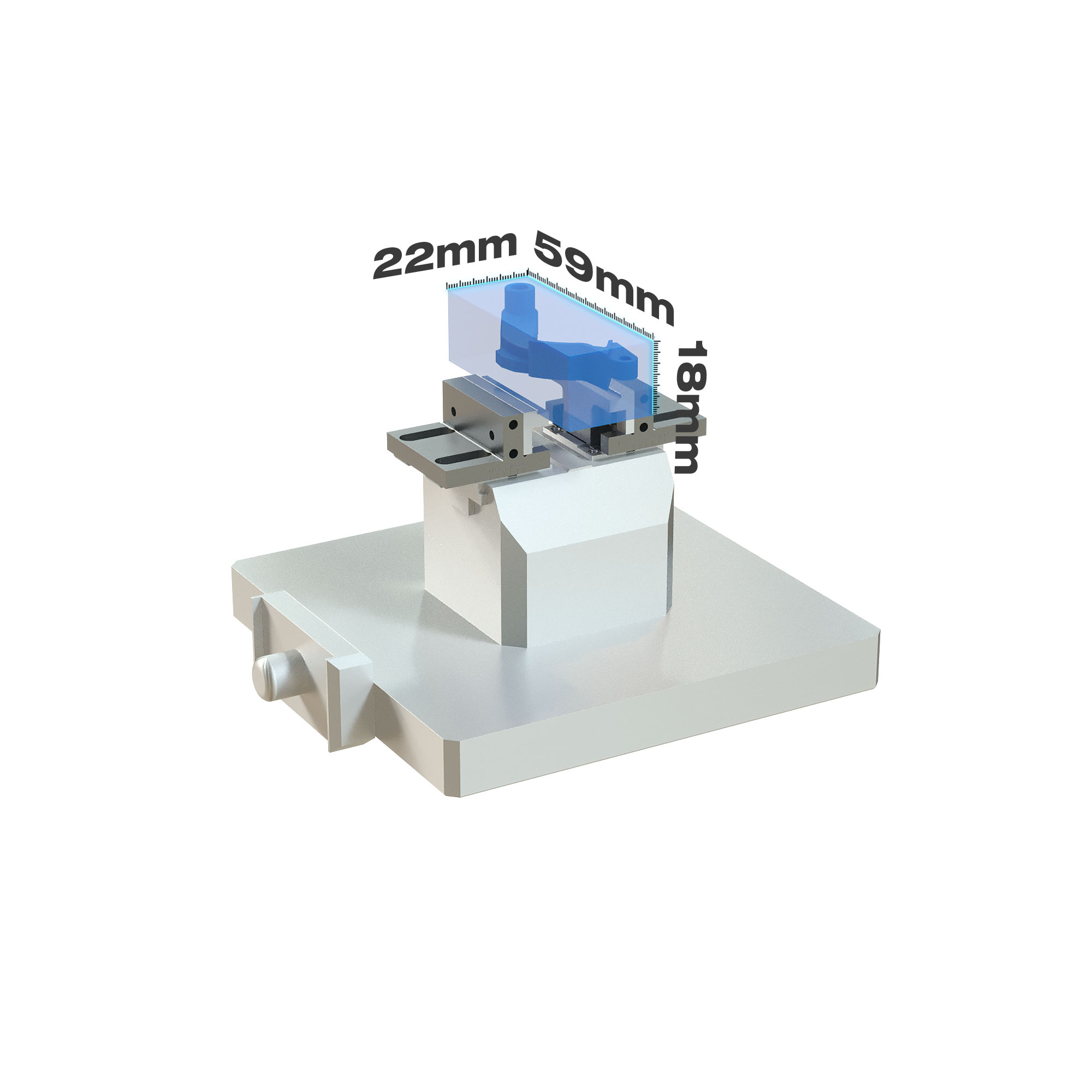

Exemplary part clamping placements

Workspace

Types	Unit of measurement	Value
X-Axis	mm	850
Y-Axis	mm	700
Z-Axis	mm	500
A-Axis	°	+91 / -139
C-Axis	°	360
Workpiece diameter	mm	Ø650
Workpiece height	mm	500

Spindle data

---

Types	Unit of measurement	Value
Speed	rpm	18.000
Power	kW	20
Torque	Nm	173

Pallet handling

---

• Economical for small to medium quantities, long individual running times or special requirements
• A variety of clamping situations possible. e.g. low tightening torques, use of mold jaws, multiple clamping
• Independent of raw part geometry and weight

Workpiece handling

---

• Economical for small, medium and large quantities, even with short individual running times
• Part clamping in a pneumatic vice
• Raw part geometry and weight limited
